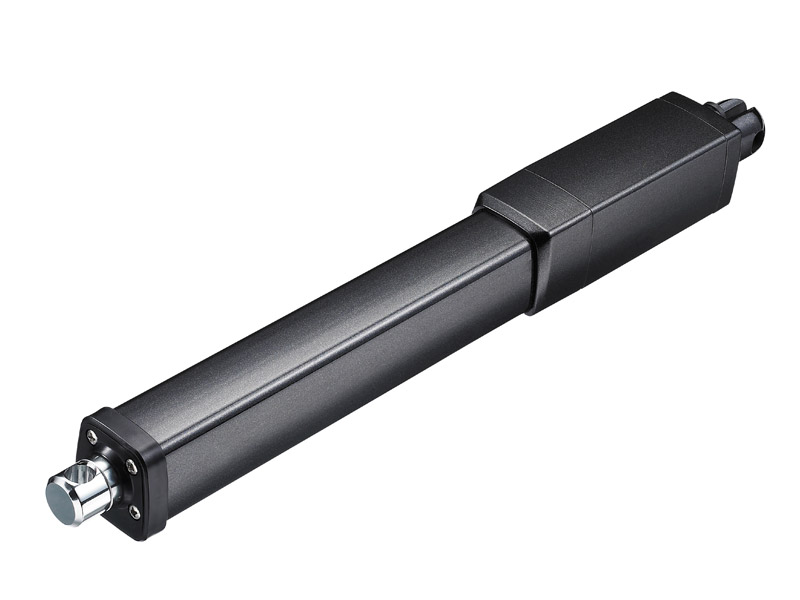

JP4 Series Linear Actuator
The JP4 in-line linear actuator is best suited to applications that require compact installation size without sacrificing load and speed. The JP4 is often used in opening window and louvre applications.
Features:
– Limit switches are able to control the actuator stroke and prevents it from moving past a set position
– Compact design benefits the user in the handling, mounting and alignment upon installation
– Allows for fast push or pull speed for applications of up to 250kg
General Specifications
| Voltage of motor | 12, 24v DC |
| Maximum load Push/Pull | 3,500N/3,000N |
| Max Stroke Length | 500mm |
| Maximum speed at full load | 24mm/s |
| Minimum installation dimension | Stroke+289mm |
| Colour | Black or Grey |
| Protection class | Up to IP69k |
| Certificate | – |
| Operational temperature range | +5°C~+65°C |
| Option | – |
The JP4 (Previously TA18) in-line linear actuator is best suited to applications that require compact installation size without sacrificing load and speed. The JP4 (Previously TA18) is often used in opening window and louvre applications.
