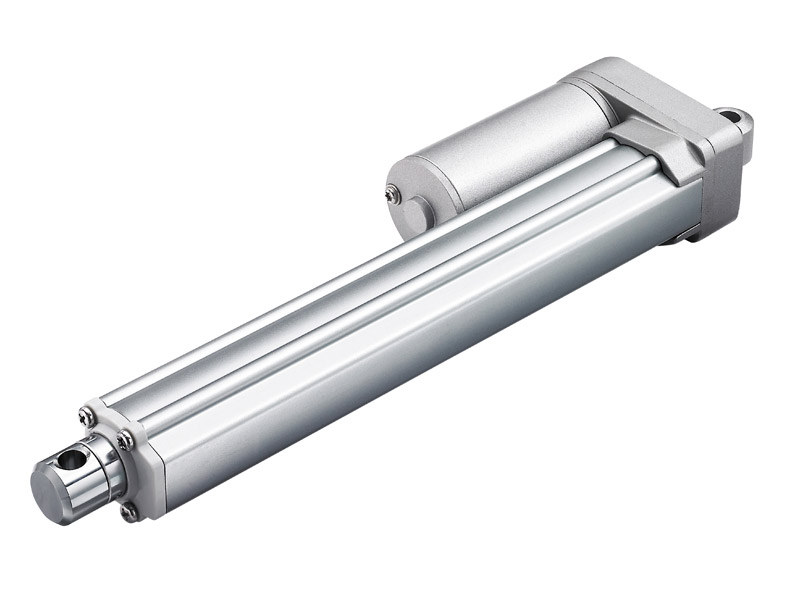

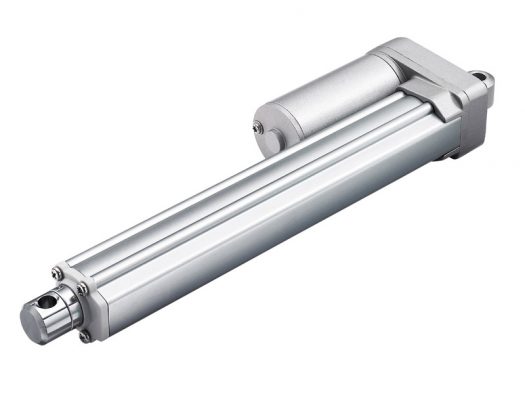

TA2 Series Linear Actuator

The compact size TA2 linear actuator is perfect for use in small spaces without sacrificing force or capability. The TA2 is a smaller version of the higher-powered TA2-P series linear actuator.

Features:
– Limit switches are able to control the actuator stroke and prevents it from moving past a set position.
– Robust and fully sealed, TA2 is designed for heavy duty outdoor use
– Compact design benefits the user in the handling, mounting and alignment upon installation.

General Specifications

Voltage of motor 12V DC or 24V DC
Maximum load Push/Pull 1,000N in pull/push
Max Stroke Length 1000mm
Maximum speed 51.0mm/s
Minimum installation dimension Stroke+105mm (without output signals)
Colour Silver
Protection class IP66
Certificate IEC60601-1, EMC, and RoHS
Operational temperature range +5°C ~ +45°C
Option POT, Optical, Hall/Reed sensor (s)
