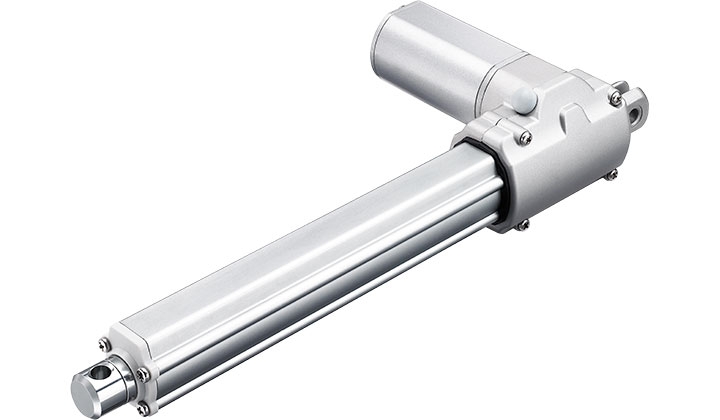

TA4 Series Linear Actuator

TecHome’s TA4 series linear actuator is compact, quiet and powerful. It is designed to fit in an area specifically requiring a right angle motor and can be equipped with a Hall sensor for feedback. Industry certifications for the TA4 linear actuator include IEC60601-1, ES60601-1 and RoHS. In addition, the TA4 is available with optional IP rating 54 or 66.



Voltage of motor 12V DC or 24V DC
Maximum load Push/Pull 3,500N/2,000N
Max Stroke Length 400mm
Maximum speed at full load 17mm/s (with 800N push/pull)
Minimum installation dimension Stroke+140mm
Colour Silver
Protection class IP66
Certificate IEC60601-1, ES60601-1, and RoHS
Operational temperature range +5°C~+45°C
Option Hall Sensor(s)
