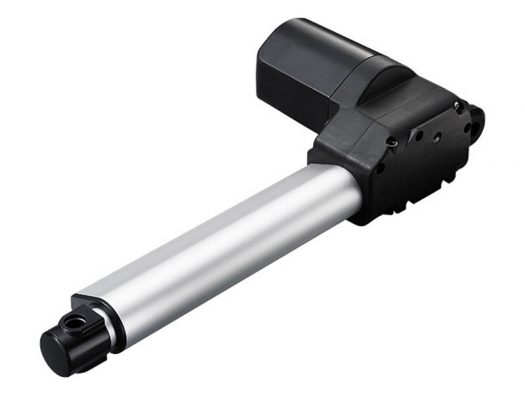

Designed for lift applications, the TA6 linear actuator is designed to fit most applications where push only functionality is required.
– Right angle construction
– Limit switches at the extended and retracted position.
– Designed for lifting applications such as recliners and lifting chairs.
– Right angle construction reduced noise and is universal to most applications
– Limit switches are able to control the actuator stroke and prevents it from moving past a set position.
– Ideal linear actuator for lift applications
|Voltage of motor||12V DC or 24V DC|
|Maximum load||6,000N in push|
|Maximum load||4,000N in pull|
|Maximum speed at full load||23.2mm/s (with 1000N in a push or pull condition)|
|Minimum installation dimension||Stroke+163mm|
|Certificate||EMC, ETL, UL 962, and RoHS|
|Operational temperature range||+5°C~+45°C|
