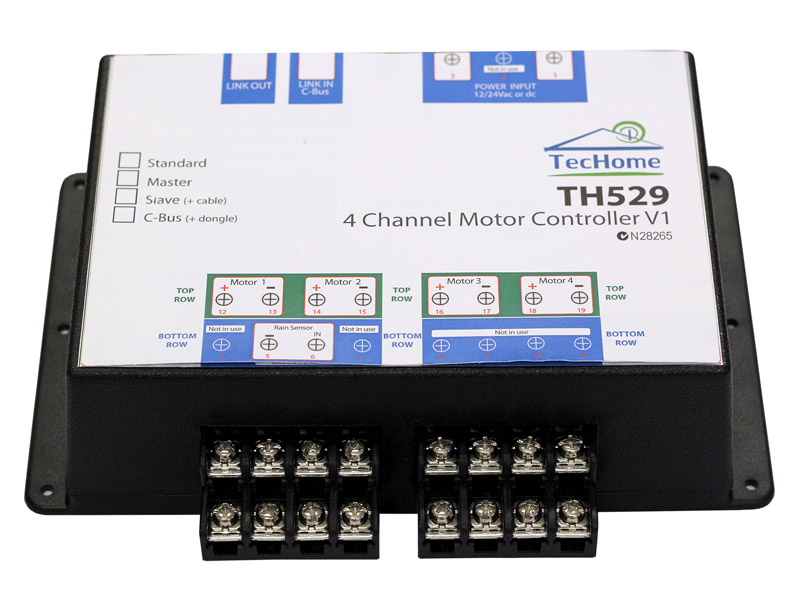

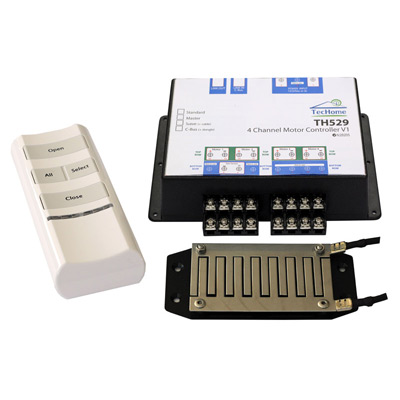

TH529 Motor Controller Roof Kit
The Techome TH529 is a remote controlled Multi Bank Opening Roof/Louvre motor controller which can control up to four motors in sequence, with the added feature of both electronic under & over current protection. With high intelligence, this controller has the parameters to detect obstructions and end of travel limited to protect the motors and linkages.
Features:
- Control from 1 to 4 motors
- Link multiple units
- Low voltage operation
- Rain sensor input standard
- Factory pre-programmed
Benefits:
- Users are able to simultaneously control up to 4 motors at one time
- Energy efficient
General Features:
| TH529 4 motor Controller | |
| Voltage | 12V or 24CV DC |
| Linkage | Up to 16 motors |
| Maximum Motor Control | 4 |
| Protection Class | IP5 |
| Operational Temperature Range | 0°-50°C |
| Tick Approval | UL/FCC/CE/C |
|
|
|
| TH379-18 6 Channel Remote Control | |
| Dimensions | 124m x 48mm |
| Channel Number | 3-6 |
| Battery | 12V |
| Protection Class | IP50 |
| Tick Approval | UL/FCC/CE/C |
|
|
|
| TH495 Rain Sensor | |
| Dimensions | 125 (132) mm x 86mm |
| Weight | 132g |
| Supply Voltage | 12V DC standard |
| Operating Range | On/ Off (precipitation/no precipitation) |
| Operating Temperature | 0°C to 80°C |
| Controller Input | Analog |
| Cable Length | 5m |
| Material | Marine Grade 316 Stainless Steel Plate |
| UV Stable | |
|
|
|
| TFM00023 Power Supply | |
| Voltage | 240V |
| Dimensions | 135mm x 83mm x 70mm |
