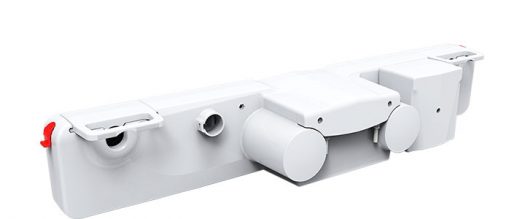

TT1 Series Linear Actuator
TecHome’s economical TT1 series twin spindle actuator is specifically designed for home care and patient care facility beds. The TT1 electrical controls come standard with a range of voltages for use in multiple countries.
It is also equipped with a SMPS transformer and has less than 0.5W of standby power consumption. A sophisticated housing design, with reliable mechanical stability, provides an alternative motor solution for various medical beds.
General Specifications
| Voltage of motor | 100~240V AC (input); SMPS 29V DC,
2.5A (output) |
| Maximum load Push/Pull | 6,000N in push only |
| Max Stroke Length | 87mm for backrest; 69mm for footrest |
| Maximum speed at full load | 4.6mm/s (with 6,000N in a push condition) |
| Minimum installation dimension | – |
| Colour | White |
| Protection class | IP66 |
| Certificate | – |
| Operational temperature range | +5°C~+65°C |
| Option | – |
