TecHome
TH528-2-kit

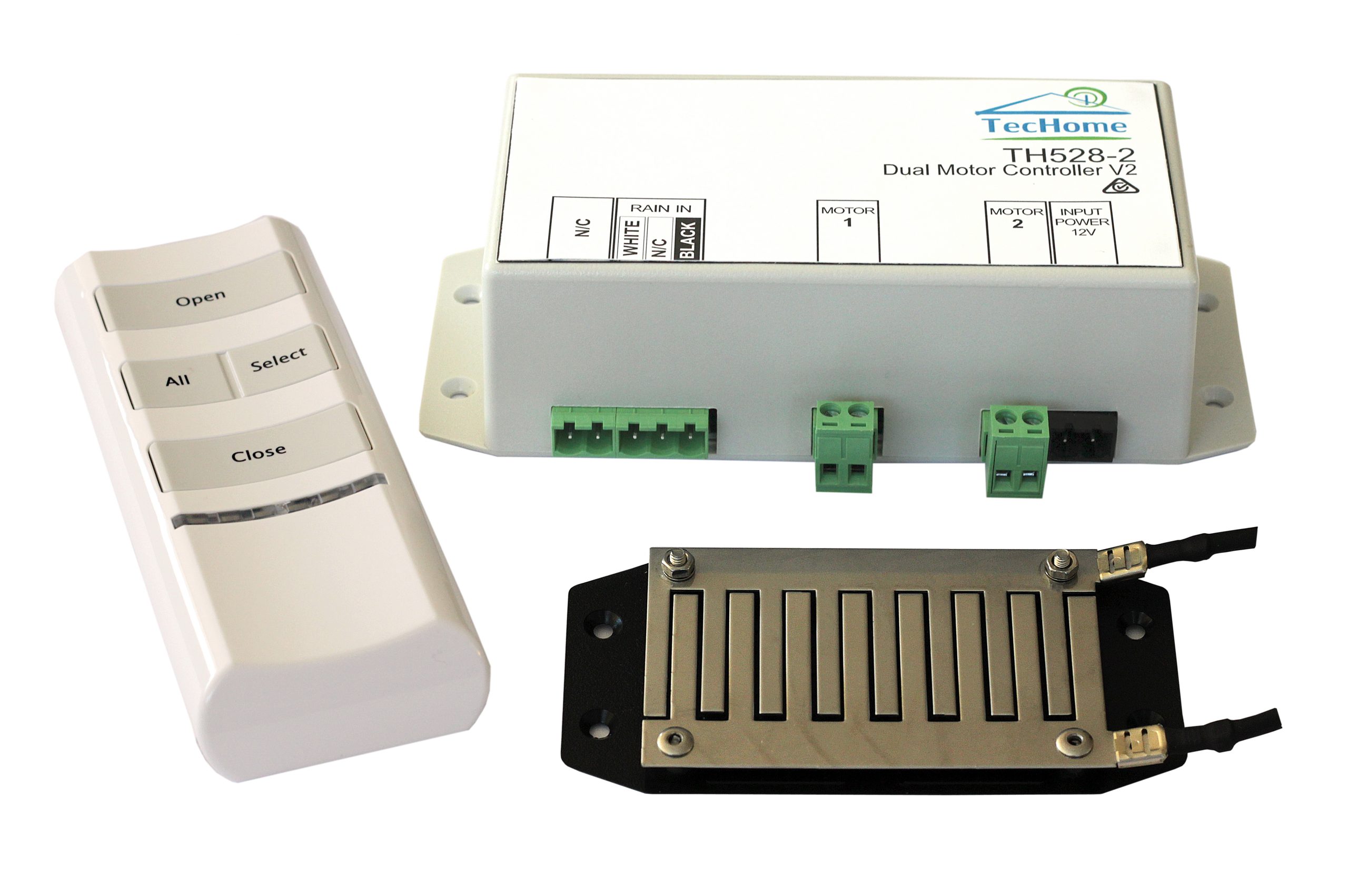

TH528-2 Motor Controller Roof Kit

Designed and manufactured in Australia, the TecHome TH528-2 Control Kit is a remote controlled 2 bank motor controller. Perfect for singular motor control, the TH528-2 is easily integrated with TecHome’s range of linear actuators.

Features:

  • Two motor control inputs
  • Low voltage operation
  • Rain sensor input standard
  • Factory pre-programmed

Benefits:

  • Users are able to simultaneously control up to 2 motors at one time
  • Energy efficient



General Features:

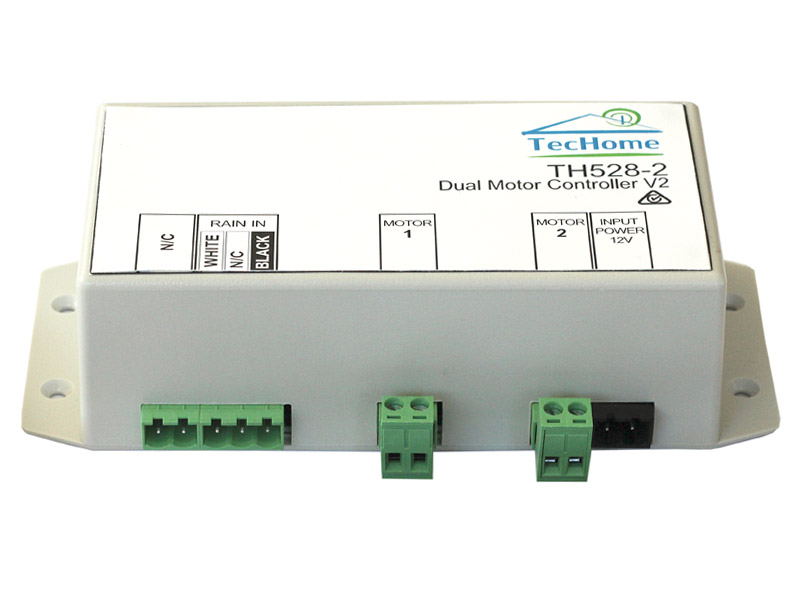

TH528-2 motor controller
Voltage 12V or 24CV DC
Dimensions 130mm x 68xx 44mm
Maximum Motor Control 2
Protection Class IP50
Operational Temperature Range 0°-50°C
Tick Approval UL/FCC/CE/C

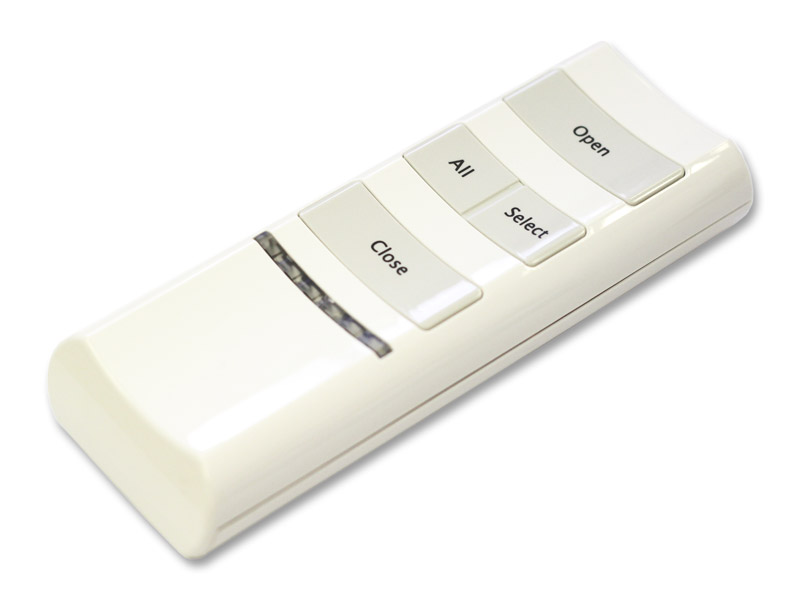

TH379-3- 1 Channel Remote
Dimensions 124m x 48mm
Channel Number 1
Battery 12V
Protection Class IP50
Tick Approval UL/FCC/CE/C

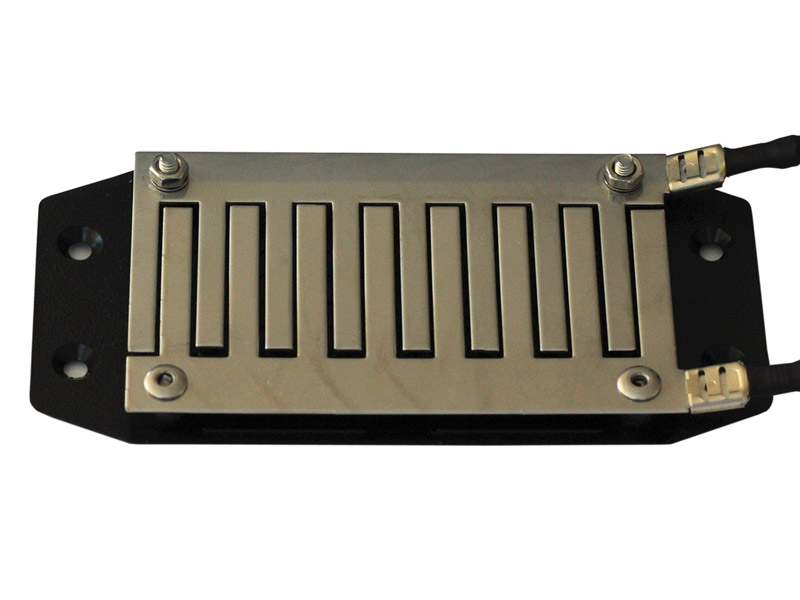

TH495 Rain Sensor
Dimensions 125 (132) mm x 86mm
Weight 132g
Supply Voltage 12V DC standard
Operating Range On/ Off (precipitation/no precipitation)
Operating Temperature 0°C to 80°C
Controller Input Analog
Cable Length 5m
Material Marine Grade 316 Stainless Steel Plate
UV Stable

TFM00023 Power Supply
Voltage 240V
Dimensions 135mm x 83mm x 70mm



CONTACT US FOR MORE INFORMATION

2 & 4 Motor Controllers – How to Learn and Delete Remotes
